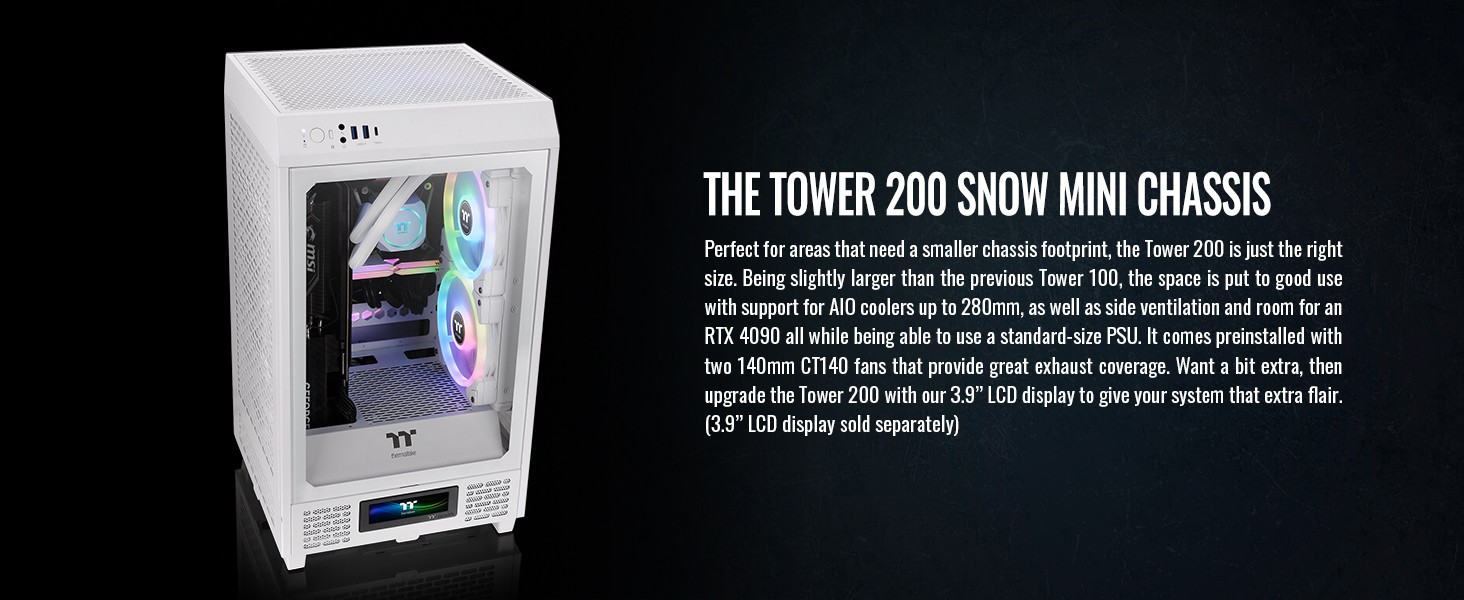

THERMALTAKE CASE THE TOWER 200 SNOW EDITION (CA-1X9-00S6WN-00)
| P/N | CA-1X9-00S6WN-00 | |
|---|---|---|
| MODEL | The Tower 200 | |
| CASE TYPE | Mini Tower | |
| DIMENSION (H X W X D) | 537 x 300 x 280 mm (21.14 x 11.8 x 11 inch) |
|
| NET WEIGHT | 7.7 kg / 16.98 lbs. | |
| SIDE PANEL | 3mm Tempered Glass x 1 | |
| COLOR | White | |
| MATERIAL | SPCC | |

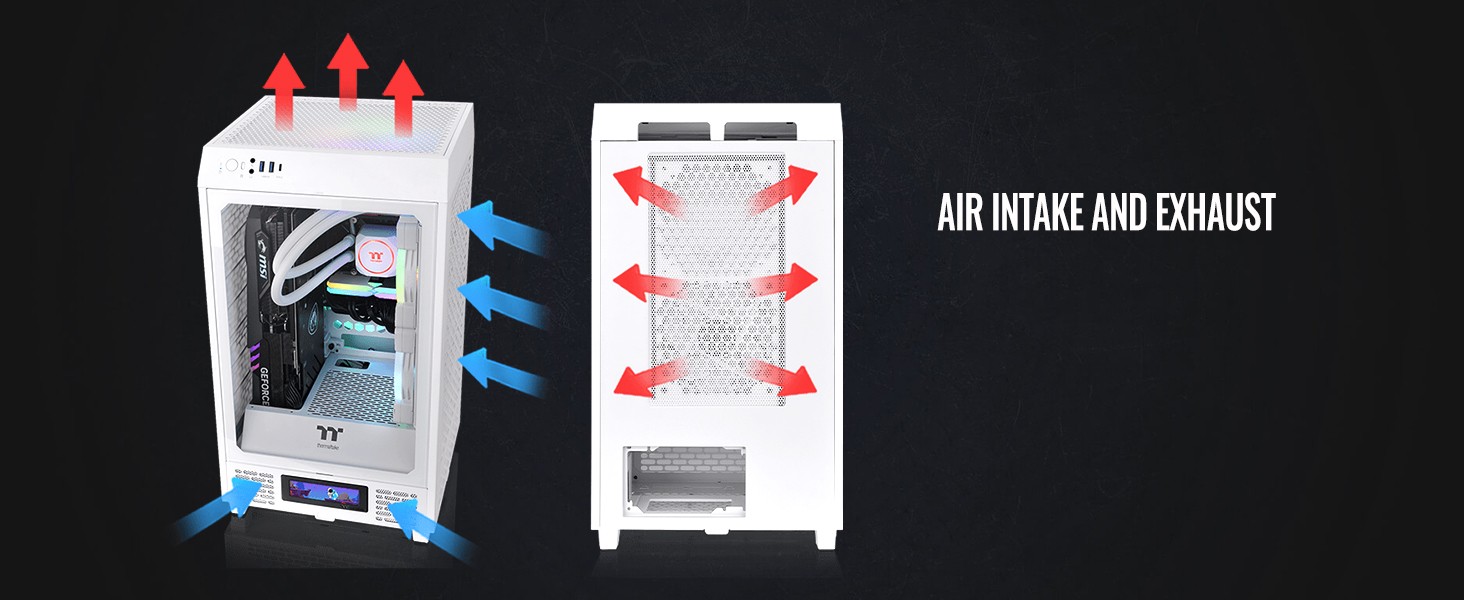

| COOLING SYSTEM | Top(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 Rear(exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 1 |
|

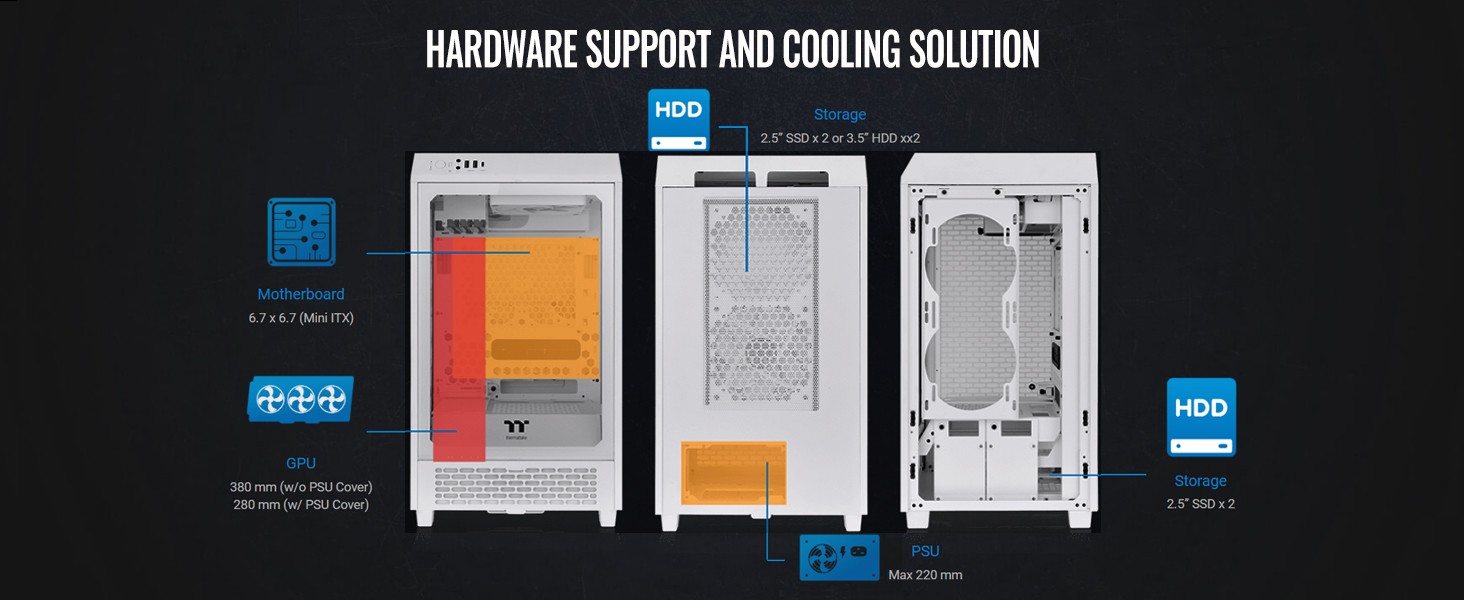

| DRIVE BAYS | 2 x 3.5”, 2 x 2.5” or 4 x 2.5” |
|
| EXPANSION SLOTS | 3 | |
| MOTHERBOARDS | 6.7″ x 6.7″ (Mini ITX) | |

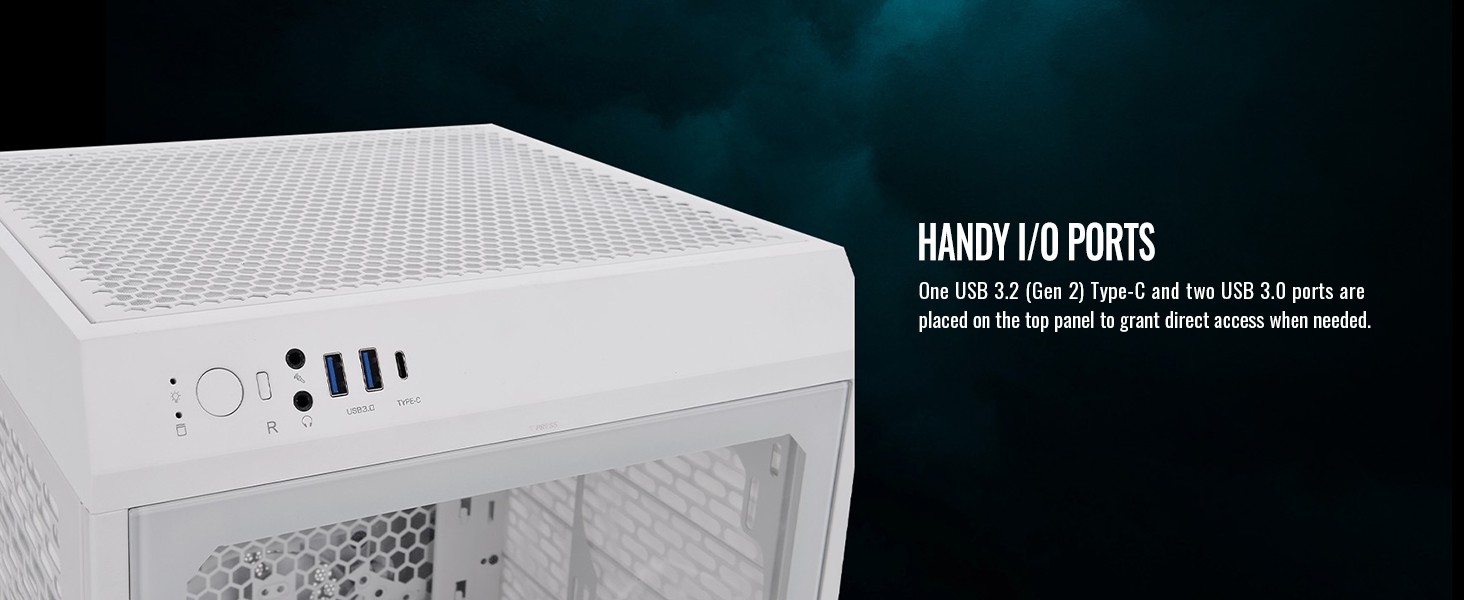

| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 | |
| PSU | Standard PS2 PSU (optional) | |

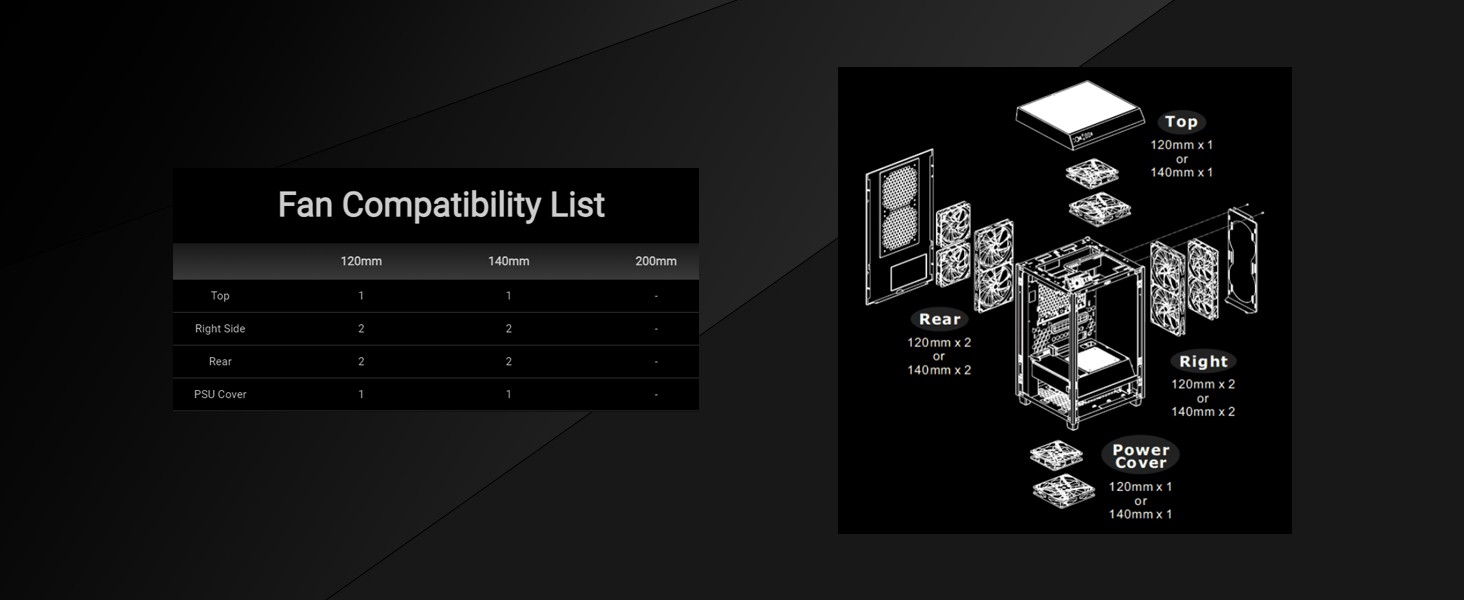

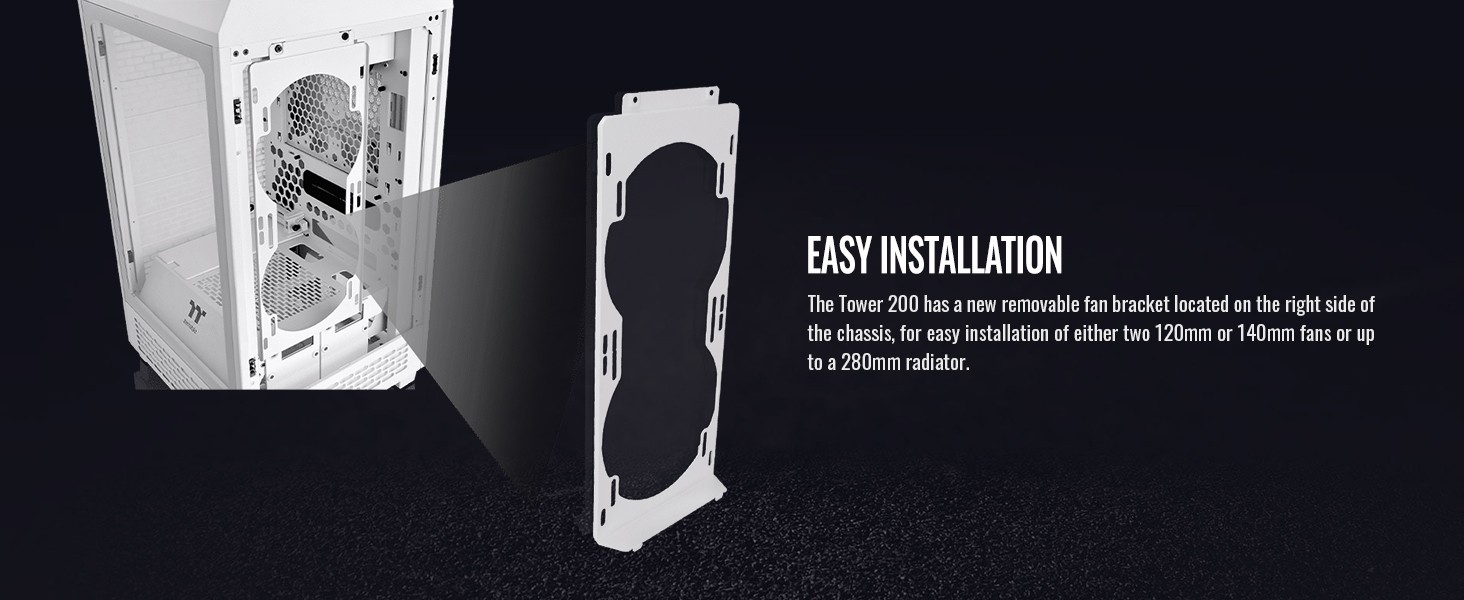

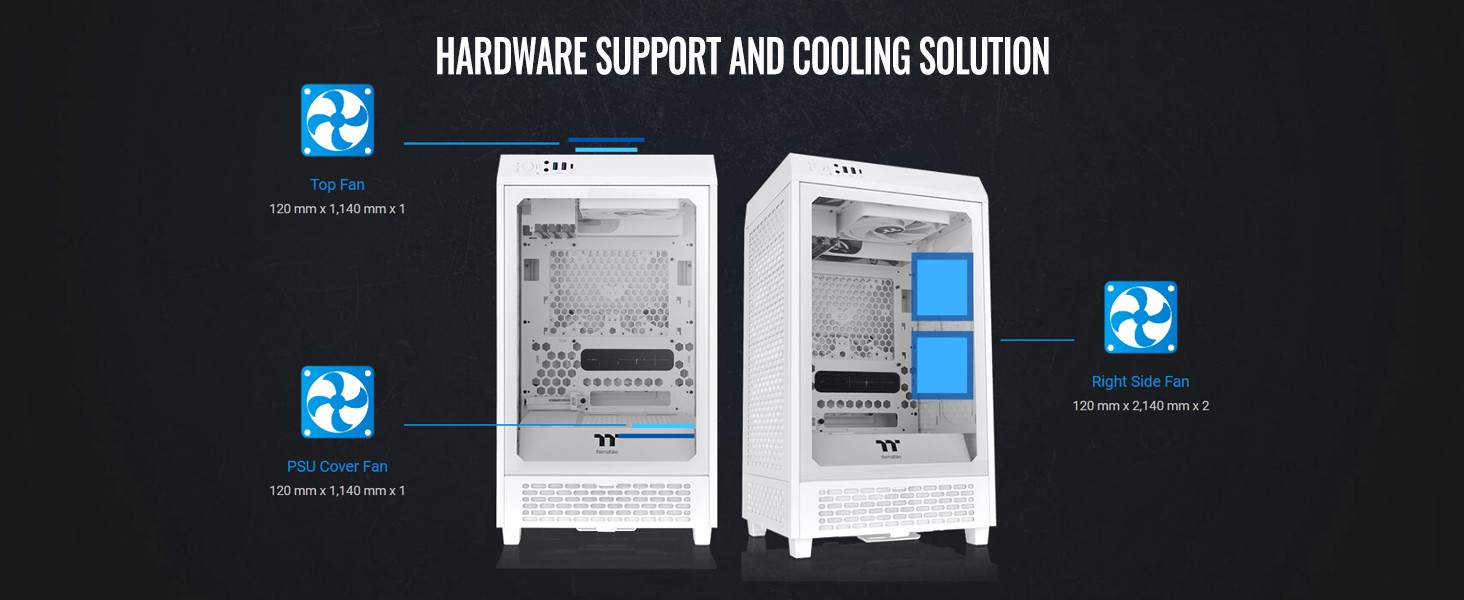

| FAN SUPPORT | Top: 1 x 120mm 1 x 140mmRight Side: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mmRear: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mmPower Cover: 1 x 120mm 1 x 140mm |
|

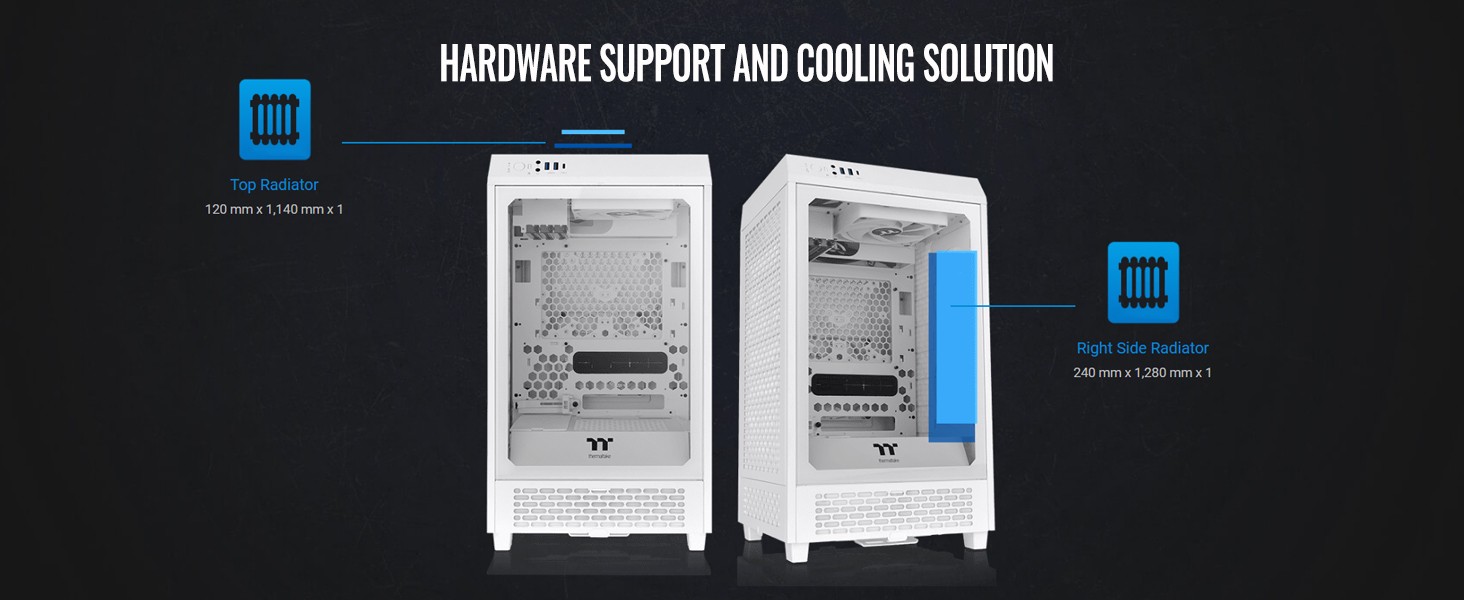

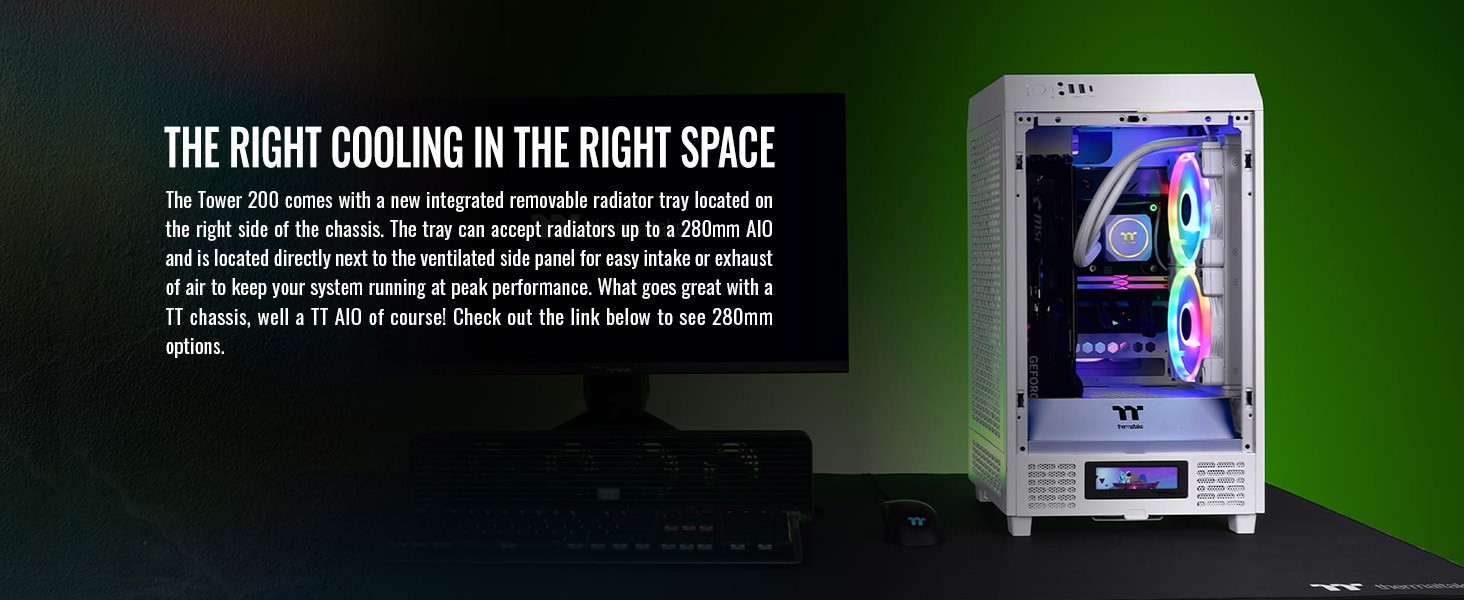

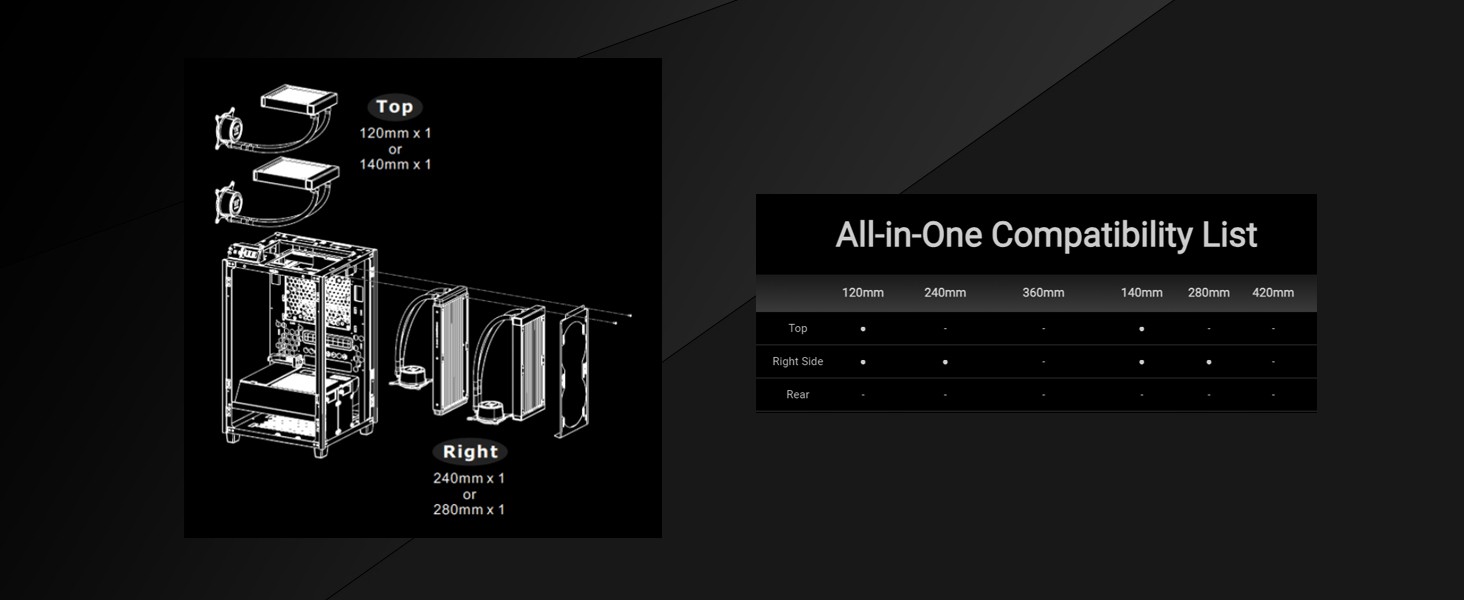

| RADIATOR SUPPORT | Top: 1 x 120mm 1 x 140mmRight Side(AIO): 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
|

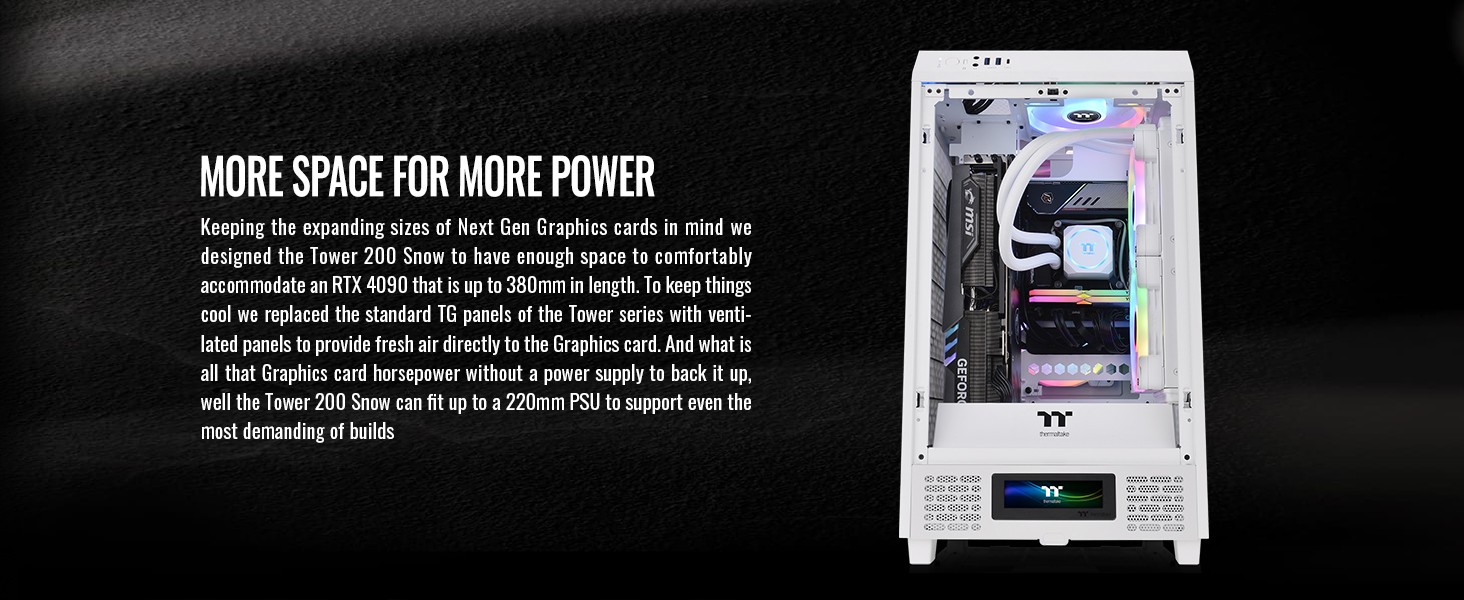

| CLEARANCE | CPU cooler height limitation: 200mm
VGA length limitation: PSU length limitation: 220mm |
Features
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
- Handy configuration mini-tower offers quick upgrades and saves time and maintenance cost
